Tray Dryers

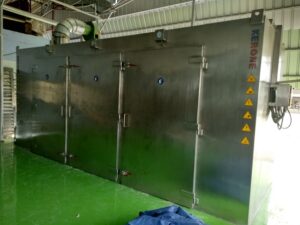

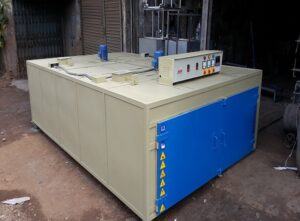

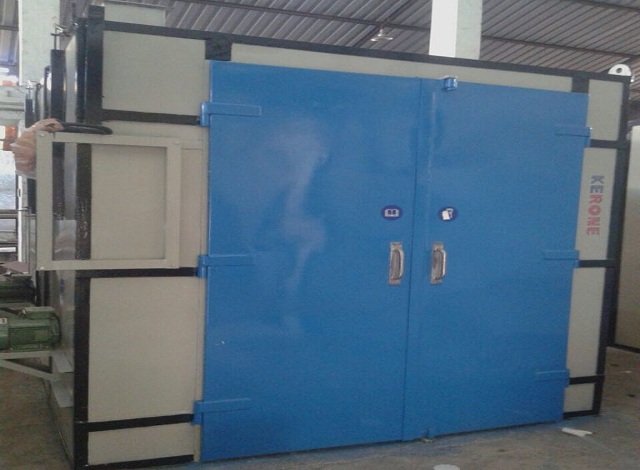

Tray Dryers are used for drying in conventional process and delivers the best result. It is constructed as double walled cabinet having one to two doors. High density fiber glass wool insulating material is filled between the gaps of two walls to avoid heat transfer. The doors are provided with gasket and the stainless steel trays are placed on the movable trolleys.

A mainstay of industrial drying operations, tray dryers are recognized for their dependability and efficiency. These adaptable devices are made up of a number of trays placed inside a chamber where heat is circulated to effectively remove moisture from a variety of materials. Tray dryers, which work on the convection principle, use hot air to hasten evaporation and guarantee even drying of all levels.

In industries as diverse as pharmaceuticals, chemicals, food processing, and agriculture, tray dryers are highly valued for their economical and user-friendly nature. Their scalable modular design enables them to meet varying production capacities while upholding uniform drying requirements of customer need.

The air circulation is provided by the dynamically placed axial flow type blower fans in the drying chamber, during the process. Control panel is provided with process timer, digital temperature controller and indicator lamp etc (Circular Chart recorder is provided at an extra cost and on demand).

Cabinet: Cabinet of the dryer will be of 12/24/48/96 trays capacity, made from MS angle frame of double wall

Capacity

• 6, 12, 24, 48, 96 and 192 trays.
• Standard and GMP models are available with SS 304/SS316/ MS internal and external.
• Stainless steel tray is available in SS 304/ SS 316 quality.

Air Circulation

The special design of the Blower maintains homogeneous air circulation so that there is homogeneous air current over the entire charge loaded in the trolley inside the dryer. The working of the motor is indicated by lamps in the control panel.

Trays

Trays will be manufactured from 1.6 mm SS 304 sheets. Its dimensions are 32″ x 16″ x 1 l/4″. The Trays have rounded corners with’ mirror finish from inside and outside. SS 316 quality is available on demand.

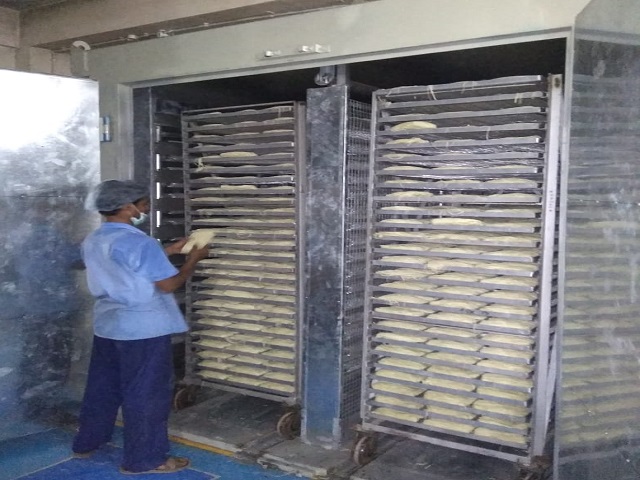

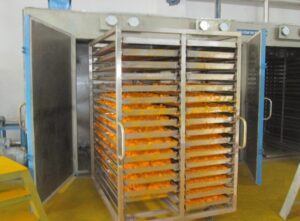

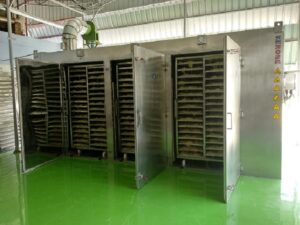

Racks and Trolleys

Racks are provided for trays inside the dryer. They are of fixed type for 12 and 24 trays models for 48 and 96 trays models. Racks are provided with wheels to slide them in and out of the dryer. An additional S.S, trolley for Racks for outside movement can be provided on request.

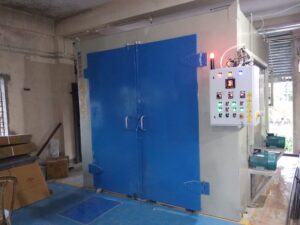

Control Panel

Pre wired control panel will be consisting of digital temp. Indicator, connector for motor, over current relay, fuses, Indicating lamp, push buttons, main isolator switch etc.

Application of Tray Dryers

• Pharmaceutical Industry
• Food Industry
• Chemical Industry
• Plastics Industry
• Textile Industry
• Ceramics Industry
• Biotechnology and Research
• Agricultural Industry
• Paper Industry
• Water Treatment Plants
• Metallurgical Industry
• Wood Industry
• Cosmetic Industry

KERONE is pioneer in application and implementation engineering with its vast experience and team of professionals. KERONE is devoted to serve the industry to optimize their operations both economically and environmentally with its specialized heating and drying solutions.
