Metering Rod

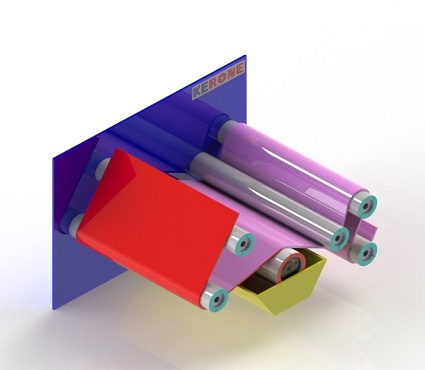

Metering Rod (Mayer Rod) Coating Machine

In Mayer rod coating process, an overabundance of the coating is saved onto the substrate as it disregards the shower roller. The wire-wound metering rod, at times known as a Meyer Rod, permits the coveted amount of the coating to stay on the substrate.

Metering Rod Coating Machine is a process of surplus coating that cast upon the substrate which ignore the shower of roller. Occasionally referred to as a Mayer Rod Coating Machine , the wire wound metering rod allows for the desired level of the coating to remain on the substrate. This quantity is regulated through the diameter of the wire employed on the rod. It, however, shows high tolerance to non-accuracy development of different segments of the coating machine during process building.

It uses a container feeder applicator roll that transfers excess amounts of coating onto the webbing followed by either a straight metering rod (smooth metering rod) or a wire-wound Mayer bar (wire-wound rod) to smoothen or meter the Variations of the coatings weights are achieved either through varying web tension over the flat roll or wired wound rods having different wire sizes which produce bigger ones resulting in more coatings weight. The point of wrap on an applicator roll and a metering rod is also used in controlling cover weights.

These types of coater are particularly dominant in their use as pre-coater or back wetting coater for boards because it allows for extremely smooth surface base upon which secondary or top coat can be made.

One of the largest and most important coating systems. It is a stainless-steel rod coiled hard with wire of varying girths made of stainless steel. Doctor of the excess coating solution as well as control the coating weight by the rod is used. The wet thickness following doctoring is regulated by the width of the winding wire used on the roll, approximately being only one tenth of the latter. The range of coat weight will depend on rods that come in a variety of wire sizes. Refer to the table below for the available wire sizes and achievable wetness level. The dry thickness is governed by the solids centralization of the coating solutions.

KERONE has over 48 years of design and manufacture experience providing tailor-made systems for industrial processing including coating as well as impregnation plants. The type of Metering Rod (Mayer Rod) Coating Machine have been producing with extensive experience will greatly meet the needs of our consumers based on their businesses’ specifications. In the production of the Metering Rod coating machines, the internal and externals materials used were of higher quality in order to achieve a neat coat and uniform heating.

This dynamic adjustment promotes smoother acceleration and consistent performance by ensuring adequate fuel supply across a range of engine speeds and loads. Measuring rods are made from robust materials like brass or stainless steel and are meticulously machined to exact measurements and tolerances. To guarantee optimal engine performance and fuel efficiency, periodic metering rod adjustments and routine maintenance are necessary. For both enthusiasts and technicians, knowing the metering rod’s function is essential to preserving engine longevity and optimal performance.

Features of Metering Rod (Mayer Rod) Coating Machine

  • Metering Rod System
  • Substrate Handling
  • Coating Material Supply System
  • Adjustable Coating Thickness
  • Drying or Curing System
  • Control System
  • Cleaning and Maintenance
  • Safety Features
  • Versatility
  • Customization Options

Application of Metering Rod (Mayer Rod) Coating Machine

  • Paper and Board Industry
  • Flexible Packaging
  • Labeling and Converting
  • Photographic Film Manufacturing
  • Textile Industry
  • Battery Electrodes
  • Converting Industry
  • Printing Industry
  • Medical and Pharmaceutical Industry
  • Automotive Industry

Advantages of Metering Rod (Mayer Rod) Coating Machine

  • Precision Coating Thickness Control
  • Consistent Coating Quality
  • Wide Range of Coating Materials
  • High Production Speeds
  • Low Maintenance Requirements
  • Customization Options
  • Reduced Waste
  • Suitable for a Variety of Substrates
  • Ease of Operation
  • Environmental Considerations
KERONE is pioneer in application and implementation engineering with its vast experience and team of professionals. KERONE is devoted to serve the industry to optimize their operations both economically and environmentally with its specialized heating and drying solutions.
