Cyclone Separator

Cyclone separators are vital equipment used in many sectors to effectively remove dust and particle matter from streams of liquid, gas, or air. These separators, which work on the centrifugal force concept, use the particles’ inertia to extract the particles from the carrier fluid. A cylindrical vessel with an inlet for contaminated fluid, a tangential entrance to produce a swirling motion, and outputs for clean fluid and separated particles make up their design.

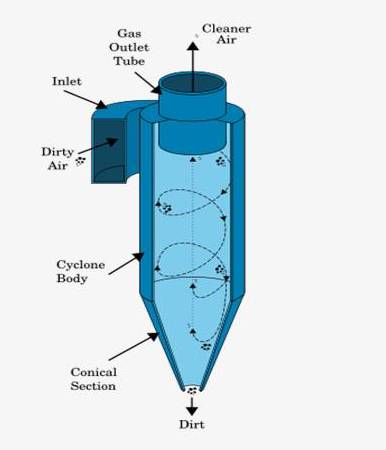

The fluid spirals downward as it enters the cyclone, producing a centrifugal force that drives heavier particles toward the outside wall and lifts the cleaner fluid higher and toward the outlet. Cyclone separators can remove anything from fine aerosols to coarse dust, making this separation method incredibly effective.

The dimensions of the cyclone, the fluid flow velocity, and the size and density of the particles all affect how effective cyclone separators are. Applications for these separators can be found in many different industries, including as mining, chemical processing, food processing, power plants, and pharmaceuticals, where keeping clean liquid streams or air is essential for both environmental compliance and operational efficiency.

The straightforward construction, little maintenance needs, and great dependability of cyclone separators are only a few of its benefits. In addition, they can manage high-temperature and high-pressure operations and are more affordable than other separation technologies. Cyclone separators are useful devices, but they have drawbacks as well. For example, their efficiency decreases with smaller particles, and the high-velocity flows can cause erosion or abrasion of the vessel walls.

On the other hand, these disadvantages are frequently reducible with appropriate design and maintenance procedures. All things considered, cyclone separators are essential parts of industrial operations all over the world since they help to keep a variety of industries’ working conditions safe and clean.

In a variety of industrial applications, cyclone separators are essential instruments for removing solid particles from gas or liquid streams. For engineers and operators looking for dependable and effective particle separation systems, their low maintenance needs, high throughput capabilities, and straightforward design make them the go-to option. Cyclone separators continue to develop as a result of continuous improvements in design and optimization methods, providing improved performance and adaptability for a variety of industrial processes.

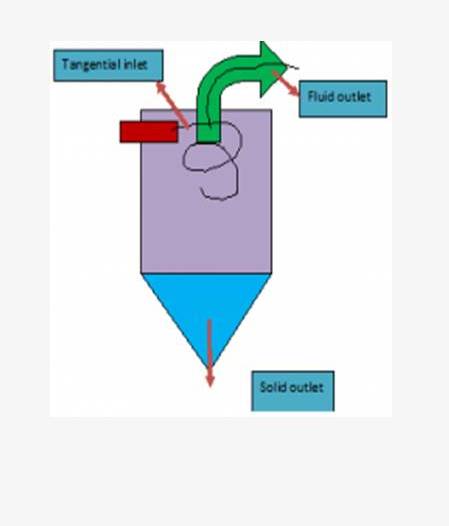

A cyclone separator is a unit that helps in separating the solids from the air, gas or liquids without need of any filtering unit. The cyclone separator operates on the principle of centrifugal force, its typical operating steps are:

• The suspensions of a solid gas usually air is introduced tangentially at a very high velocity so that rotary movement takes place within the vessel.
• The fluid is removed from the central out let at the top.
• The rotary flow within the cyclone separator causes the particles to react by centrifugal force.
• The solids are thrown out to the walls, there after it falls to the conical base and discharge through solids outlet.

Features of Cyclone Separator

• High performance
• Highly controllable
• Built with the high quality stainless steel material or special Alloys.
• Personalized structure design
• Corrosion free
• Tailor made to fit your requirements.
• Highly controllable
• Very efficient
• Large-scale Serialization

Applications

Cyclones are basically used as pollution control and purify these pollutants and flue gas

• Abrasives
• Coolant mists
• Explosive media
• Fine powders
• Metalworking chips
• Toxic media
• Various other production plant exhausts.
